Complete Wireless Control Network

Built to protect. Designed to scale.

FieldLink connects remote inputs and equipment into one wireless network for monitoring, alarms, control events, and coordinated shutdowns from the Master or any Node.

!
Any Master or Node input can initiate a network shutdown

High water, pressure fault, power loss, emergency stop, or any configured input can stop assigned equipment across the network.

Input sources⚡●◇
MasterCentral network controller

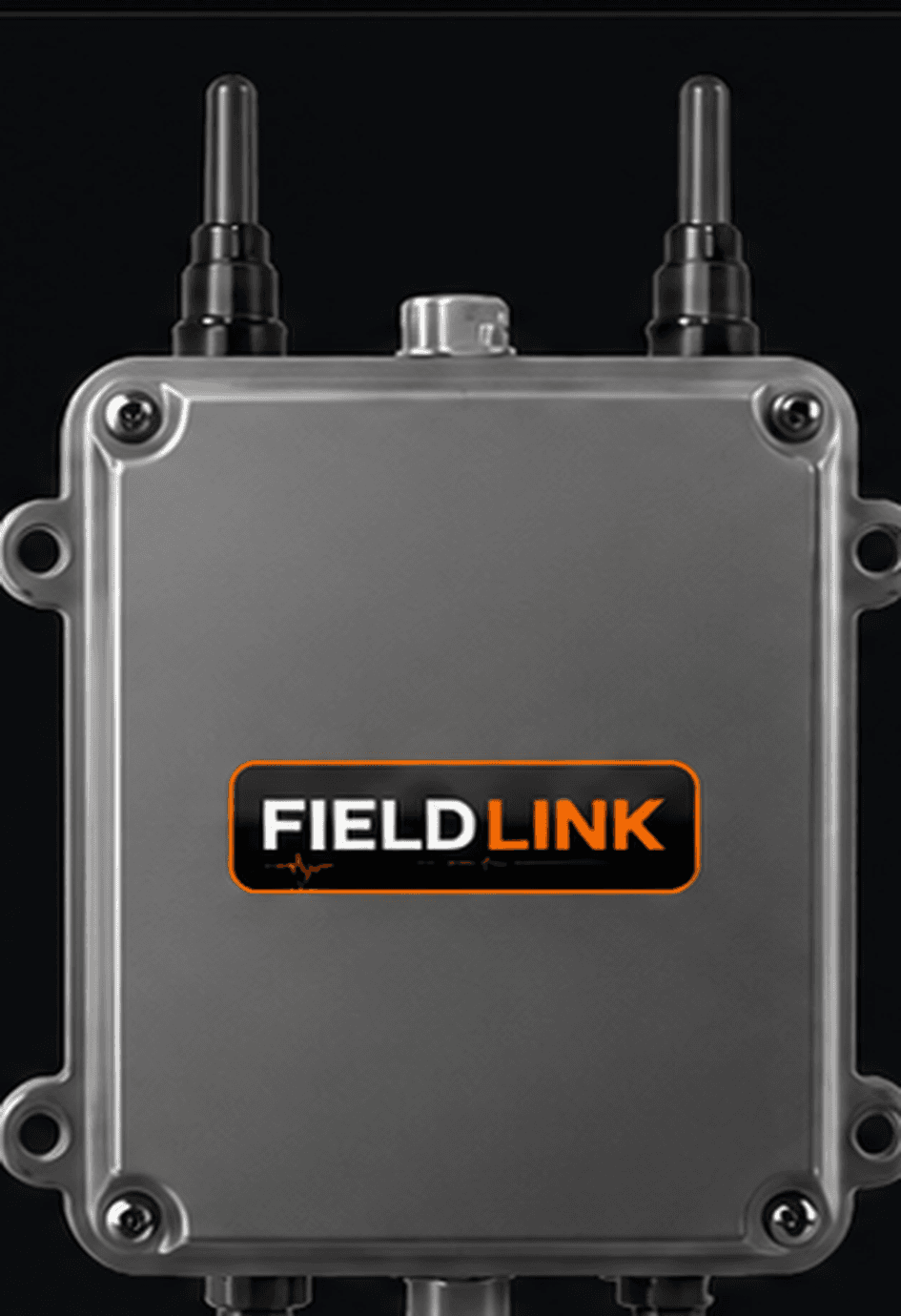

FieldLink industrial wireless shutdown controller
  • Up to 3 digital inputs
  • Up to 2 relay outputs
  • Heartbeat monitoring
  • Local decision logic
  • Sends and receives control events
Wireless Network
Up to 8 NodesEncrypted and reliableHeartbeat supervised
FieldLink industrial wireless shutdown controller
Node 1Up to 3 inputsUp to 2 outputs
MonitorAlarmControlShutdown
FieldLink industrial wireless shutdown controller
Node 2Up to 3 inputsUp to 2 outputs
MonitorAlarmControlShutdown
FieldLink industrial wireless shutdown controller
Node 3Up to 3 inputsUp to 2 outputs
MonitorAlarmControlShutdown
+ Up to 5 more NodesSupports up to 8 total Nodes
Optional Connectivity

Turn on cellular. Extend visibility.

Keep the core FieldLink network local, then add SMS alarms and cloud monitoring when your site needs them.

Cellular SMS Alarms

Enable cellular connectivity with the onboard DIP switch to send SMS notifications for alarms, shutdowns, Node offline events, and system restores.

DIP switch enabled
FieldLink Cloud Dashboard

Optionally monitor all sites from one dashboard, including Master status, Node health, inputs, outputs, alarms, signal strength, and event history.

Multi-site visibility

✓Core monitoring, control, and shutdown functions continue locally even if cellular or cloud service is unavailable.

How a shutdown works

1
Input detectedA configured input at the Master or any Node changes state.
2
Master validatesAlarm delay and shutdown logic are applied.
3
Command sentThe Master sends a command to assigned Nodes.
4
Outputs activateNode relay outputs change state.
5
Equipment stopsPumps stop and alarms or notifications are generated.

✓The shutdown network operates locally and does not depend on cellular service or the cloud.

Heartbeat MonitoringContinuous supervision of the Master and every Node.
Alarm & NotificationsOptional SMS alarms with cellular enabled, plus dashboard and SCADA notifications.
Latching & Fail-SafeLatch on alarm and optional fail-safe on communications loss.
Long-Range Reliability10+ mile capability with repeater support when required.
Scales With YouSupports up to 8 Nodes per wireless network.
Multi-Site Cloud DashboardOptionally monitor every FieldLink site from one centralized dashboard.

Traditional radios do not know they have failed

Know immediately when something goes wrong.

FieldLink continuously supervises every Node. When communication stops, the Master detects it, records the event, sends configured notifications, and can initiate a fail-safe response.

Traditional Shutdown Radio

Silent failure

The radios may stop communicating, but there is no heartbeat supervision to tell the operator.

Master RadioAppears normal
Remote RadioOffline or unpowered
!
Nobody knows

The failure may remain hidden until a shutdown is needed or an operator visits the site.

  • No heartbeat supervision
  • No communication-loss alarm
  • Manual testing and site visits
  • Failure discovered after the fact
FieldLink

Supervised network

The Master expects continuous heartbeats and reacts when a Node stops reporting.

1
Heartbeat activeMaster continuously verifies Node communication.
2
Node goes offlinePower loss, radio failure, or damaged equipment stops reporting.
3
Master detects lossThe missed heartbeat becomes a supervised network event.
4
Operator notifiedOptional SMS and cloud alerts identify the affected site and Node.
5
Fail-safe responseConfigured alarms, latching, or shutdown actions are applied.
Example response

From communication loss to operator awareness

1
0 secNode stops reporting

Communication or power is lost.

2
HeartbeatMaster identifies the missed check-in

The network event is created locally.

3
AlertSMS and dashboard update

Configured recipients receive the event.

4
ActionOptional fail-safe or shutdown

Assigned equipment moves to its configured safe state.

FieldLink does not wait for an operator to discover a silent radio failure.

Optional Cloud Monitoring

Your network never sleeps.

Every heartbeat. Every alarm. Every relay. Every site.

One dashboard gives operations, maintenance, and management instant visibility into every Master, every Node, every alarm, and every relay across every site.

✓Live heartbeat supervision✓Node online / offline status✓RSSI signal strength✓Relay output status✓Digital input status✓SMS alarm history✓Site and Node naming✓Configure alarm contacts✓Configure input actions✓Event history
Unlimited SitesMonitor every deployed FieldLink site from one view.
Up to 8 Nodes per MasterExpand coverage with additional Nodes or Repeaters.
SMS NotificationsCritical alarms and offline events delivered instantly.
Optional Cloud DashboardEnable full visibility whenever your operation needs it.
Role-Based UsersSecure access for operators, installers, and management.

FIELDLINK CLOUD

Live Field Network Overview

All Sites⌄Live

Live Field Network

Master, heartbeat, RSSI, relay, and input state

Master + 8 Nodes Healthy
M
Master Controller

Riverside Production Unit

Supervising all remote nodes

Network

8 / 8 Online

Cellular

Connected

Node 1

East Tank Battery

-42 dBm

Relay

Ready

Equipment

Running

Node 2

SWD Injection Pump

-51 dBm

Relay

Ready

Equipment

Running

Node 3

LACT Transfer Pump

-63 dBm

Relay

Ready

Equipment

Running

Node 4

North Lease Pump

-58 dBm

Relay

Ready

Equipment

Running

Node 5

Saltwater Transfer

-47 dBm

Relay

Ready

Equipment

Running

Node 6

Injection Well #2

-69 dBm

Relay

Ready

Equipment

Running

Node 7

Fresh Water Station

-54 dBm

Relay

Ready

Equipment

Running

Node 8

West Production Well

-61 dBm

Relay

Ready

Equipment

Running

All Sites Overview

Monitor multiple master sites from one dashboard

3 Sites

Riverside Production Unit

Master Online

Master

8 / 8

Nodes Online

0

Active Alarms

-52 dBm

Avg RSSI

Last update: 10:24:31 AM

North Tank Battery

Master Online

Master

6 / 8

Nodes Online

1

Active Alarms

-59 dBm

Avg RSSI

Last update: 10:24:31 AM

West Injection Unit

Master Online

Master

7 / 8

Nodes Online

0

Active Alarms

-61 dBm

Avg RSSI

Last update: 10:24:31 AM
LegendOnlineOfflineWarningRSSI StrengthHeartbeatRelay StatusPump StatusDigital Input
Network HealthAt-a-glance status for every site.
Master StatusConnection, cellular, Node count, and network state.
Node HealthLive RSSI, relay state, and input status for every Node.
ConfigurationRename sites, configure inputs, and update alarm contacts.

Flexible. Scalable. Always protecting.

1. Standalone NetworkLocal shutdown always protects. No cellular or cloud required.
2. Enable CellularFlip the onboard DIP switch to enable cellular connectivity.
3. SMS Alarm NotificationsCritical alarms, shutdowns, offline events, and restores are delivered instantly.
4. Optional Cloud DashboardGain full visibility, configuration control, and event history.
5. Multi-Site ManagementScale to unlimited sites and manage everything from one dashboard.
✓Core monitoring, control, and shutdown continue locally without cellular or cloud connectivity.

One hardware platform. Every role.

The ultimate simplicity.

Every FieldLink controller is universal. Configure it as a Master, Node, or Repeater in seconds using the onboard DIP switches.

Role SelectionDIP
1
2
3
4
5
6
7
8
FieldLink industrial wireless shutdown controller
Configured RoleMaster

Set the role, power the controller, and place it into service—no separate hardware model required.

Why universal hardware matters

One part number simplifies the entire lifecycle.

Installers no longer need separate Master, Node, and Repeater inventory. Any spare controller can replace any field unit.

One part number to stock

Simplifies purchasing, warehousing, and spare-parts planning.

Any unit can replace any unit

Carry one universal spare for every supported role.

Faster field replacement

Swap the controller, set the DIP role, and return to service.

Easy network expansion

Add Nodes or Repeater coverage without ordering a different model.

Lower inventory cost

Fewer unique devices and fewer dedicated spare parts.

Maximum uptime

Simpler service and faster replacement reduce operational downtime.

Traditional systems
MasterNodeRepeater
Three hardware types. Three part numbers. Three spare inventories.
FieldLink
1Universal Controller
One controller configured for any role.
1
WarehouseUniversal spare in stock
2
InstallReplace any controller
3
Set DIPSelect Master, Node, or Repeater
4
OnlineReturn the site to service

Built for critical applications

Built for every remote site.

Whether you are protecting an oil lease, monitoring a water system, controlling irrigation, or supervising industrial equipment, FieldLink uses the same hardware platform and the same network logic.

Oil & Gas FieldLink application

Oil & Gas

Protect production sites, tank batteries, pump stations, injection systems, and remote lease equipment.

✓Tank High Level✓Pump Shutdown✓Production Monitoring
Water & Wastewater FieldLink application

Water & Wastewater

Monitor wells, tanks, treatment facilities, lift stations, booster pumps, and remote water assets.

✓Lift Stations✓Water Tanks✓Booster Pumps
Agriculture FieldLink application

Agriculture

Connect irrigation pumps, storage tanks, pivots, and distributed field equipment across large properties.

✓Irrigation✓Storage Tanks✓Remote Pumps
Mining & Industrial FieldLink application

Mining & Industrial

Supervise remote machinery, process equipment, conveyors, dewatering systems, and critical utilities.

✓Conveyors✓Dewatering✓Process Pumps
One platformUnlimited field applications.

Connect sensors, alarms, relay outputs, and shutdown logic anywhere remote equipment needs to be monitored or controlled.

Discuss Your Application

Wireless Shutdown. Continuous Protection.

Ready to protect your operation?

Request a Demo
